Speed Sensor Magnet

Introduction

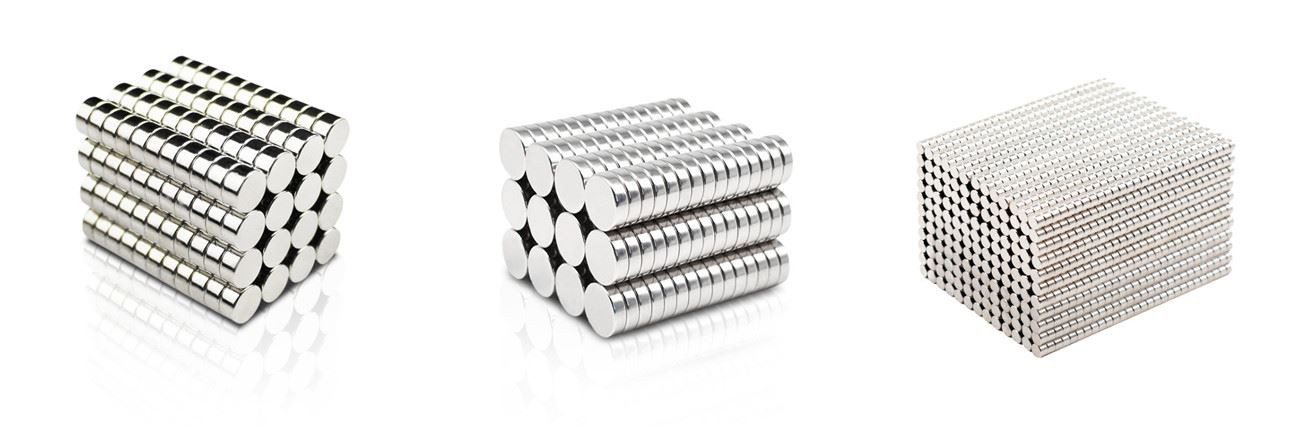

A speed sensor magnet is a small, cylindrical or rectangular magnet that is used in conjunction with a magnetic sensor to detect the speed of rotating objects, such as wheels, gears, or motors. The magnet is typically mounted on the rotating object, and the sensor is placed nearby to detect the magnetic field changes created by the passing of the magnet.

speed sensor has many advantages compared with induction coil sensor and Hall Effect sensor, include:

1.Zero-speed measurement.

2.Wide-working

3.Relatively wide working frequency which between 0 and 25 kHz.

4.Wide working temperature ranges.

5.Powerful capability of electromagnetic interference resistance.

Working Principle

The working principle of a speed sensor magnet is based on the principle of magnetic induction. When a magnet passes by a magnetic sensor, the sensor detects the changes in the magnetic field and produces an electrical signal. This signal can be used to determine the speed of the rotating object.

The sensor typically contains a coil of wire that is wrapped around a magnetic core. As the magnetic field created by the rotating magnet passes through the core, it induces an electrical current in the coil. The frequency and amplitude of this current can be used to determine the speed of the magnet and the object it is attached to.

Applications:

Automotive: Speed sensor magnets are used in automotive applications to measure the speed of a vehicle's wheels or drive shafts. This information is used for various systems, such as anti-lock brakes and traction control.

Industrial: Speed sensor magnets are used in industrial applications to monitor the speed of machines and equipment, such as conveyor belts and motors. This information is used for maintenance and troubleshooting purposes.

Medical: Speed sensor magnets are used in medical applications to monitor the speed of devices such as centrifuges, which are used for blood testing and other laboratory procedures.

Aerospace: Speed sensor magnets are used in aerospace applications to measure the speed of aircraft engines and other critical systems.

Overall, speed sensor magnets are essential components in many different industries and applications, providing critical information for the safe and efficient operation of various machines and systems.
