Neodymium Sphere Magnets

10mm neodymium sphere magnets in N42 grade with nickel coating. Sintered NdFeB ball magnets for movable assemblies. Custom diameters available.

Send Inquiry

Products Description

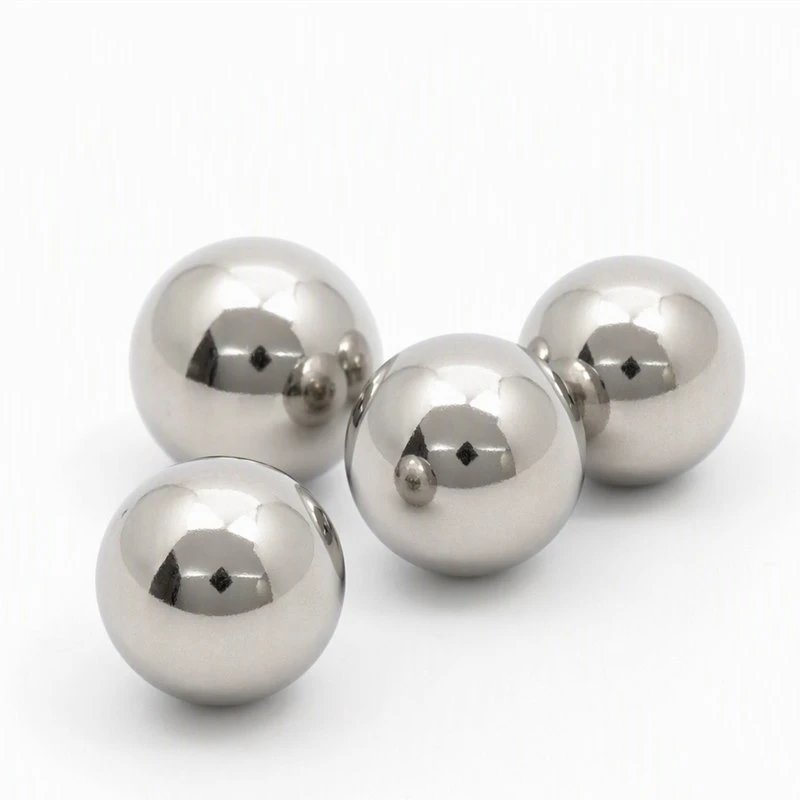

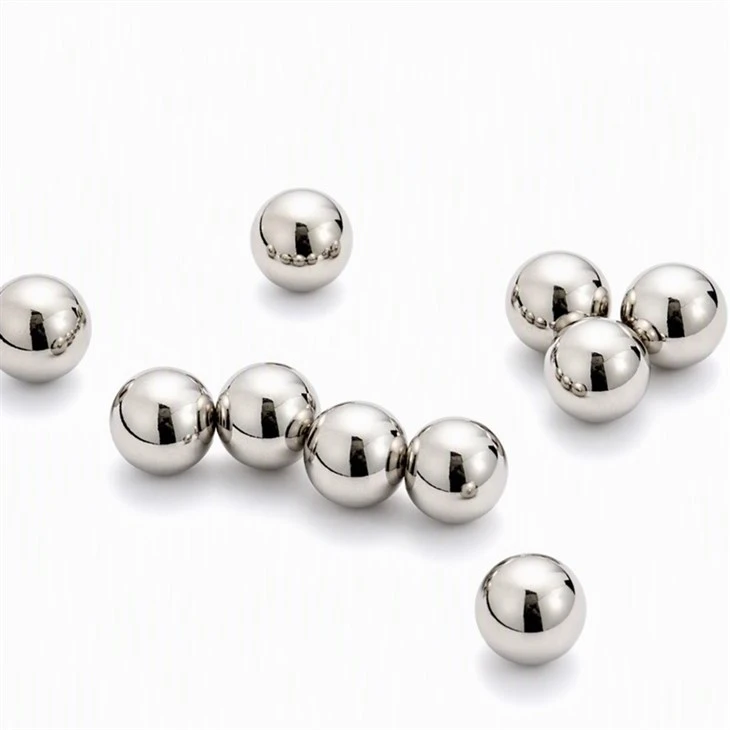

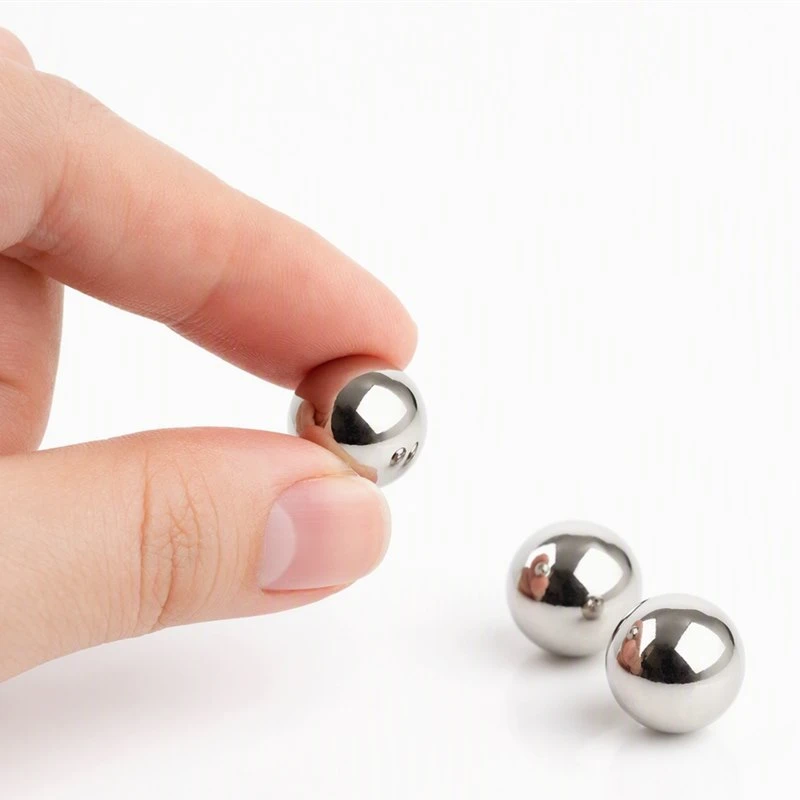

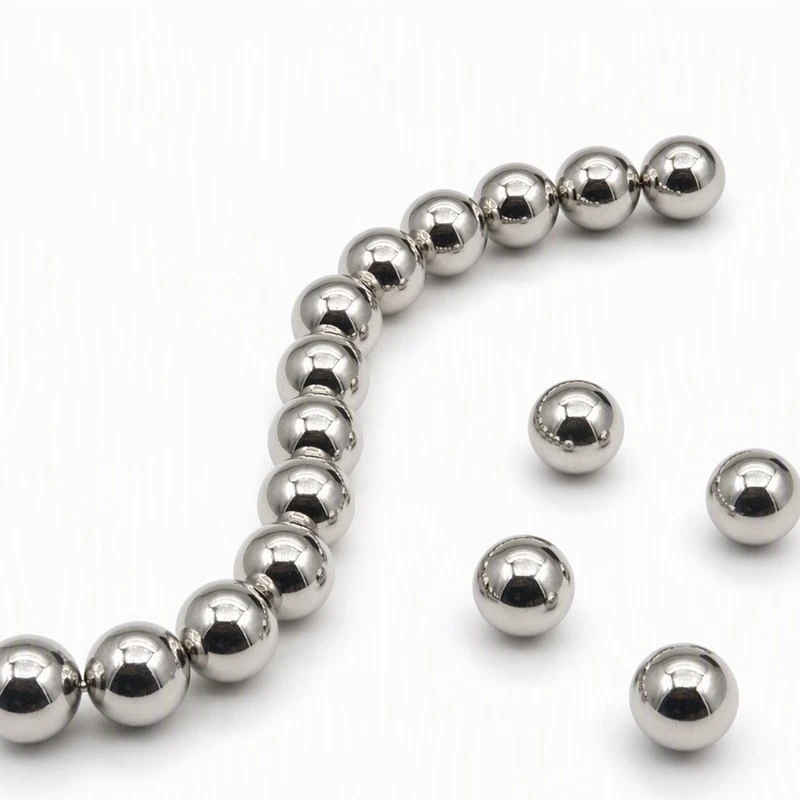

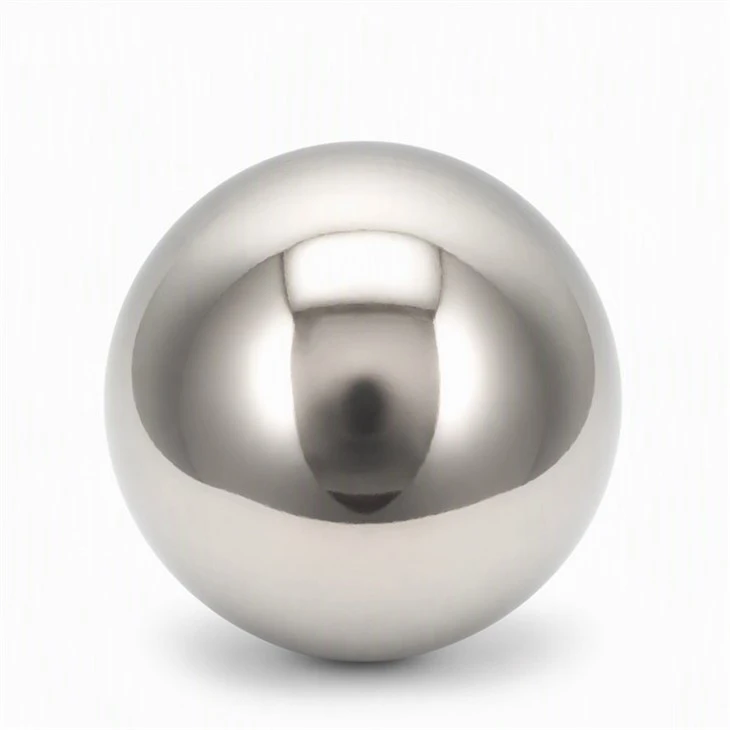

10mm neodymium sphere magnets are spherical sintered NdFeB permanent magnets with a 10 mm diameter and a nickel-based protective coating. Each magnet has a north and south pole on opposite sides of its spherical surface.

Unlike flat disc or block magnets, these spherical magnets can roll and rotate freely, allowing their orientation to change during movement or contact with magnetic materials. This makes them suitable for applications requiring movable or adjustable magnetic components.

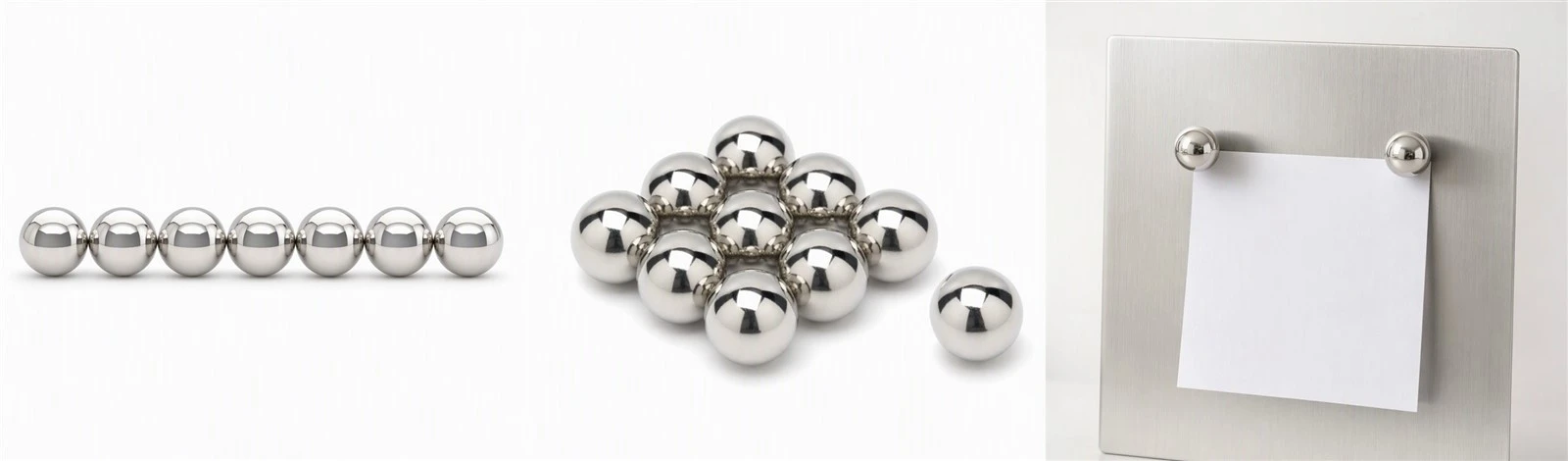

Neodymium Sphere Magnets-strip

Magnetic Properties and Rolling Behavior

Our 10mm NdFeB sphere magnets are commonly manufactured in N42 grade. They can attract small ferromagnetic objects such as paper clips and be used in lightweight magnetic holding applications.

Unlike flat magnets, a sphere makes point-like contact with a flat steel surface. This limits its effective contact area and allows it to roll or rotate more easily. Its holding performance differs from that of a disc or block magnet, depending on magnet geometry and installation conditions.

The ability to move and reorient is a key reason for choosing a spherical magnet instead of a flat magnet.

Applications

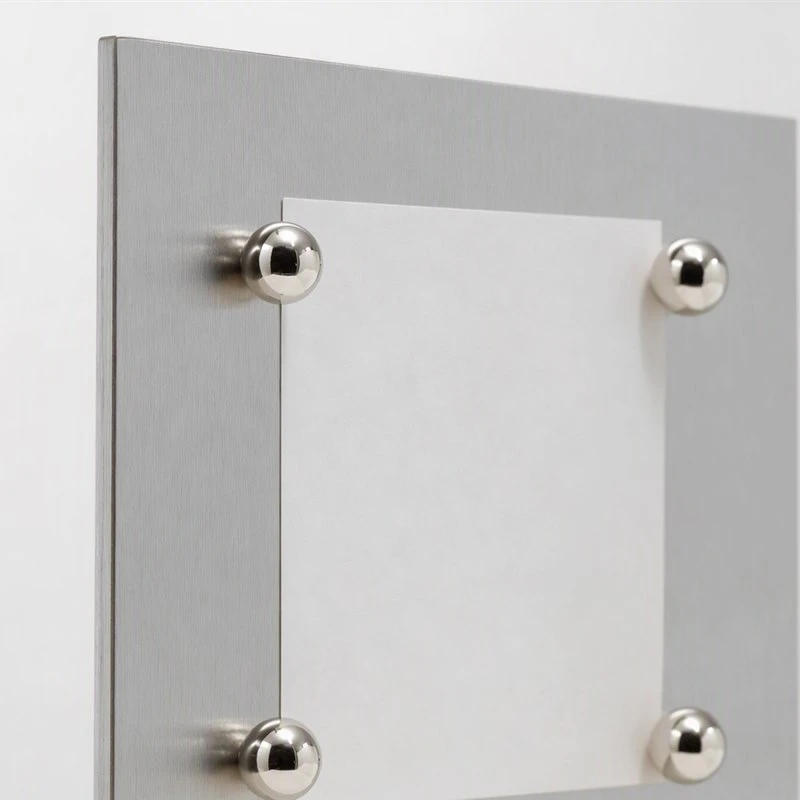

These spherical neodymium magnets are used in movable magnetic markers, pivoting assemblies, hanging decorations, educational demonstrations and selected hobby sensor projects.

Their ability to roll and change orientation makes them suitable for designs requiring magnetic movement rather than fixed positioning. Where a stable, flat contact surface is required, disc or block magnets may be more appropriate.

Request a Quote

As a neodymium magnet manufacturer with our own production facilities, we supply 10mm NdFeB sphere magnets and other diameters according to customer requirements.

Please provide the required diameter, magnetic grade, coating, application details and order quantity. We will confirm the available specifications and magnetization requirements before quotation.

FAQ

Q: How are neodymium sphere magnets magnetized?

A: Neodymium sphere magnets are typically magnetized along a single axis passing through the center of the sphere, creating north and south poles on opposite sides. Because the surface is round, the magnet can rotate freely to align with an external magnetic field.

Q: Are neodymium sphere magnets as strong as disc magnets?

A: Neodymium sphere magnets can provide strong magnetic attraction, but their holding performance differs from that of disc magnets. A sphere has a small contact area against a flat surface, while a disc provides a flat pole face. Actual holding force depends on the magnet grade, dimensions, air gap and contact material.

Q: Are neodymium sphere magnets safe to handle?

A: Neodymium sphere magnets should be handled carefully because they can snap together, pinch fingers or chip on impact. Small magnetic spheres also present a serious ingestion hazard and must be kept away from children. They are not suitable for use as children's toys.

Q: Can neodymium sphere magnets be customized in size and coating?

A: Yes. Neodymium sphere magnets can be supplied in different diameters, magnetic grades and protective coatings, subject to manufacturing feasibility. Please provide your required diameter, grade, coating and order quantity for a quotation.
