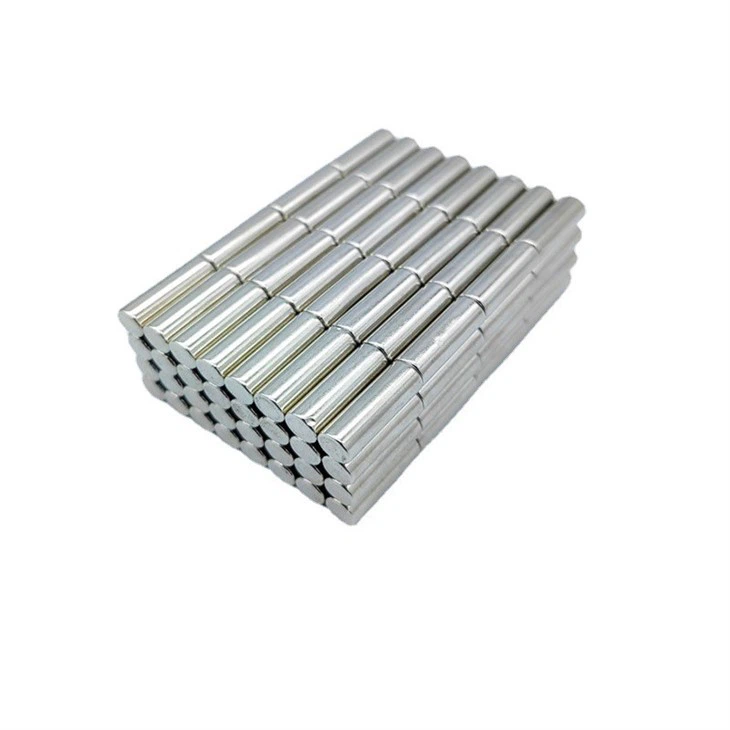

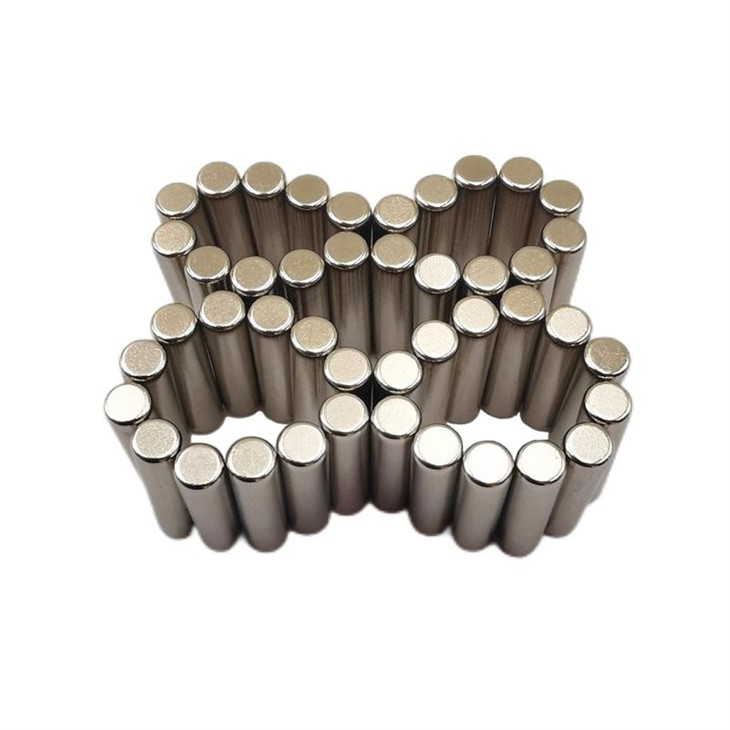

NdFeB Radially Magnetized Cylindrical Magnet

NdFeB radially magnetized cylindrical magnet

A radially magnetized cylindrical magnet refers to a type of magnet where the magnetic field lines run along the radius of the cylinder, as opposed to the more common axial magnetization where the lines run along the length of the cylinder.

Manufacturing Process:

The manufacturing process involves sintering the raw materials at high temperatures and then subjecting them to a series of machining processes to achieve the desired shape and magnetization orientation.

Radial Magnetization:

Unlike conventional axial magnetization, where the magnetic field runs along the length of the magnet, radially magnetized magnets have their magnetic field lines running along the radius. This unique magnetization pattern offers specific advantages in certain applications.

High Magnetic Strength:

NdFeB magnets are renowned for their high magnetic strength, making them suitable for a wide range of industrial and consumer applications where strong and compact magnets are required.

Applications:

Radially magnetized cylindrical magnets find applications in various industries, including but not limited to:

Electric motors and generators

Magnetic couplings

Magnetic bearings

Sensors and detectors

Magnetic resonance imaging (MRI) devices

Advantages:

The radial magnetization pattern provides unique advantages such as improved efficiency in certain motor and generator designs. It can also enhance the performance of devices like magnetic couplings and bearings.

Challenges:

While NdFeB magnets offer exceptional magnetic properties, they can be susceptible to corrosion. Therefore, proper coating or plating is often applied to protect the magnet from environmental factors.

Considerations:

Designers and engineers need to consider the specific requirements of their applications when choosing a magnet. Factors such as temperature stability, corrosion resistance, and the required magnetic strength play crucial roles in the selection process.

In summary, NdFeB radially magnetized cylindrical magnets combine the exceptional magnetic properties of neodymium magnets with a unique magnetization pattern, making them valuable components in a variety of technological applications. Their high strength and specific design advantages make them a popular choice in industries that rely on powerful and compact magnetic solutions.
