Wind Turbine Magnet

wind turbine magnet is a high-performance permanent magnet used in the generator to convert mechanical energy into electrical energy. In modern wind power systems, NdFeB magnets are widely used due to their high magnetic energy density, enabling efficient and compact generator design.

These magnets play a critical role in direct-drive and permanent magnet generator systems.

wind turbine is an electrical device that converts wind energy into mechanical energy, which drives the rotor to rotate and ultimately generates AC power. It typically consists of components such as the rotor, generator, direction regulator (tail vane), tower, speed-limiting safety mechanism, and energy storage system.

• High magnetic energy for efficient power generation
• Stable performance in harsh environments
• Suitable for large-scale wind turbine systems
• Optimized for generator efficiency and durability

①engine room, ② rotor blade,③2 axis, ④ low-speed shaft,

⑤ gearbox, ⑥ high-speed shaft and its mechanical brake,

⑦ generator, ⑧ yaw device,⑨ electronic controller, ⑩ hydraulic system,

⑪ cooling element, ⑫ tower,⑬ anemometer and wind vane, ⑭ tail rudder.

• Divided by pitch or not: fixed pitch - immutable pitch, passive yaw; Variable pitch - variable pitch, active yaw;
• According to blades: two blades, three blades and multiple blades;
• By motor type: permanent magnet direct drive wind turbine, asynchronous doubly fed wind turbine;
• According to the direction of the axis: horizontal axis and vertical axis;
• By power: micro, small, medium and large,
• By Region: offshore type and onshore type.

Compared with high-performance ferrite magnets, neodymium magnets (Nd-Fe-B) are more suitable for building high-efficiency and powerful wind turbines due to their strong magnetic performance and high-temperature resistance. Their temperature capability is closely related to the material grade. According to market data, when the operating temperature exceeds 160 °C, EH series neodymium magnets are required.

The performance of different magnet grades varies, particularly in intrinsic coercivity (Hcj). Higher-quality materials provide higher Hcj, resulting in better resistance to demagnetization, but also come at a higher cost.

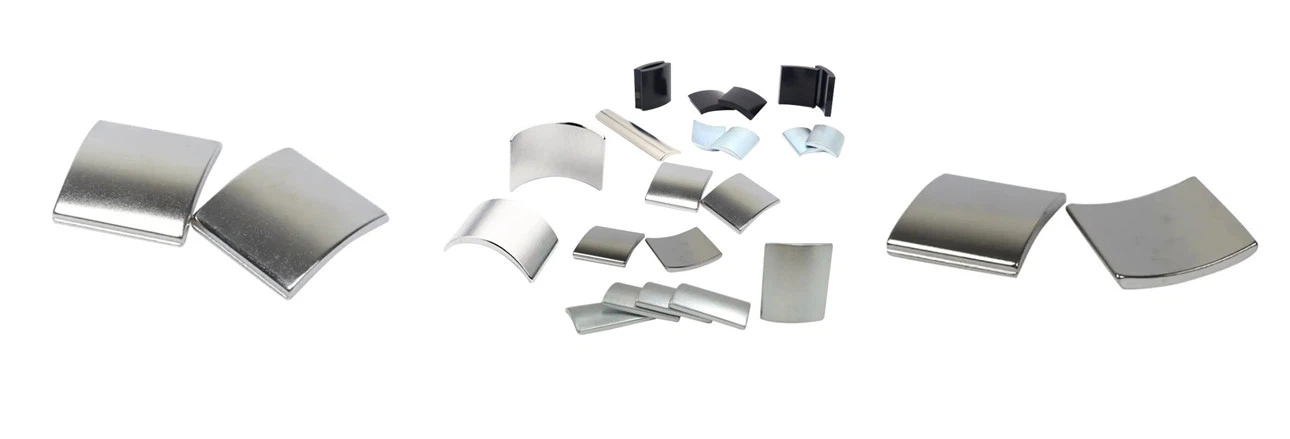

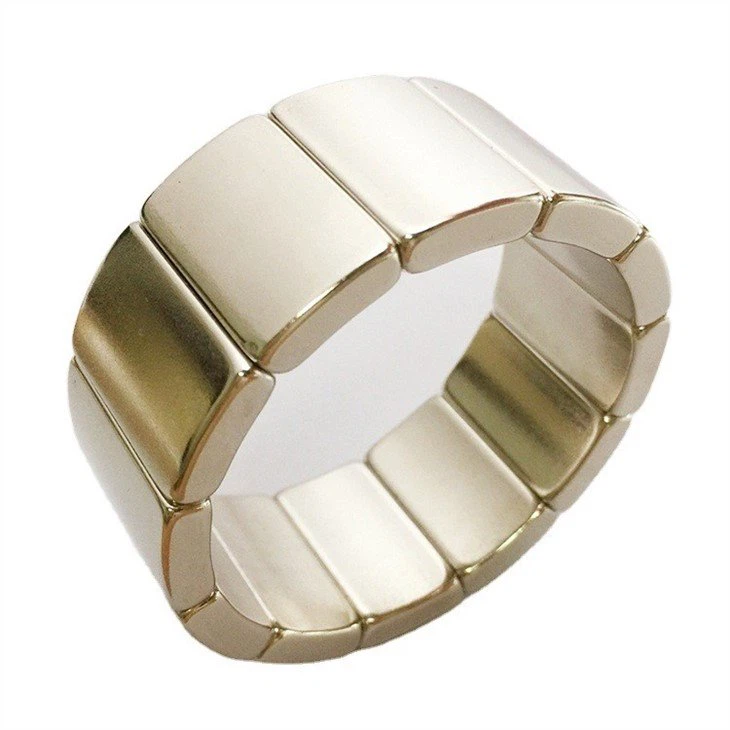

Common magnet shapes used in wind turbines include arc and segment magnets, which are designed to fit generator rotor structures and maximize magnetic efficiency.

Hongyu team has been also collected much experience on wind turbine magnet. Customize various sizes of wind turbine magnets according to customer needs or send drawings and samples.
