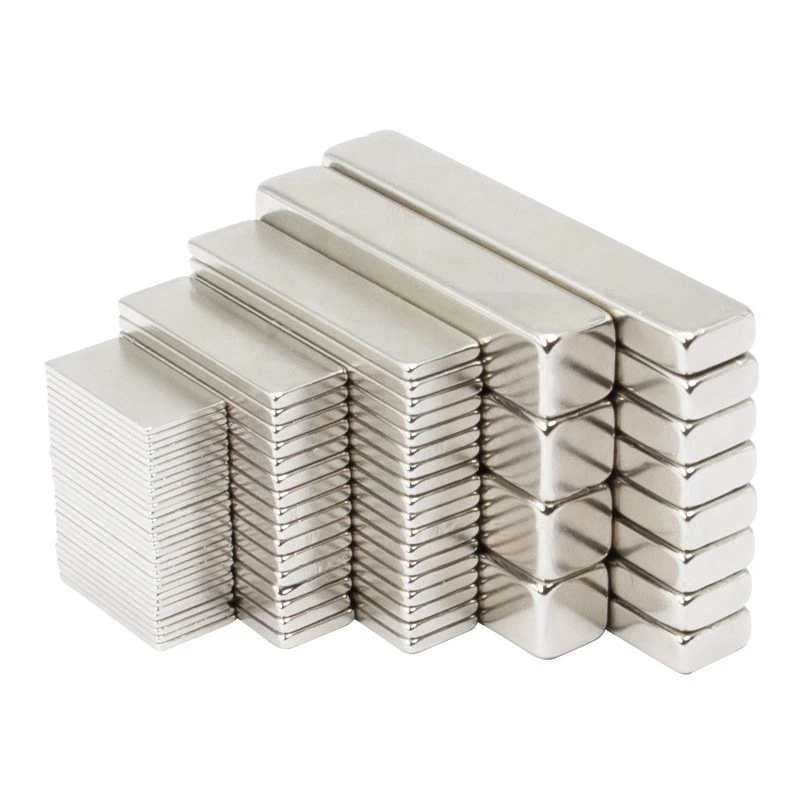

20x10x5 mm Neodymium Block Magnets
20x10x5 mm neodymium block magnets are strong, compact rectangular magnets made from sintered NdFeB material. Measuring 20 mm × 10 mm × 5 mm, they are commonly used in magnetic fixtures, mounting systems, positioning devices and industrial assemblies.
Products Description
20x10x5 mm neodymium block magnets are rectangular sintered NdFeB permanent magnets measuring 20 mm in length, 10 mm in width and 5 mm in thickness. Their compact size and strong magnetic performance make them suitable for magnetic fixtures, positioning devices, industrial assemblies and general-purpose holding applications.

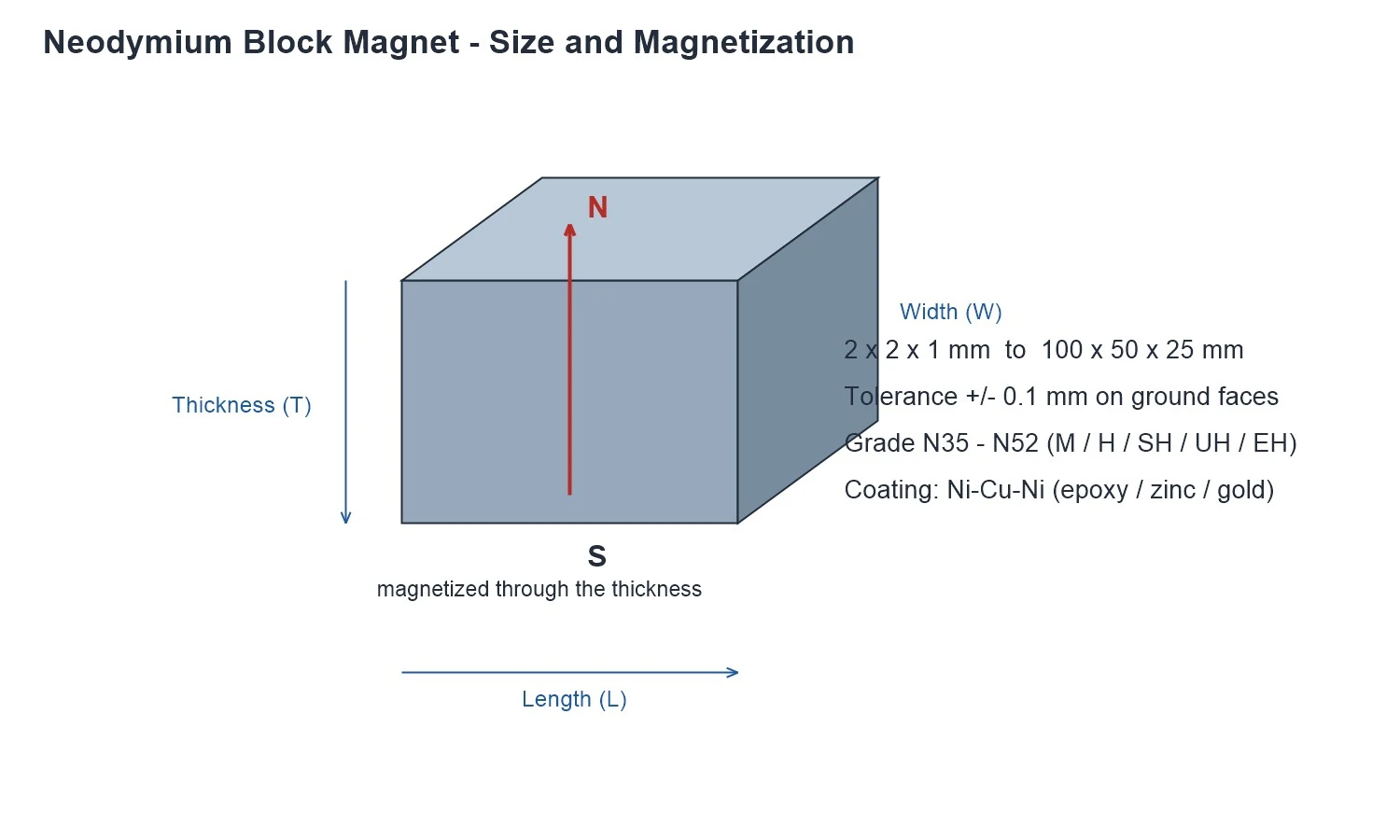

As a neodymium magnet manufacturer with our own production facilities, we offer these rectangular magnets in grades N35 to N52, with nickel-copper-nickel (Ni-Cu-Ni) plating as a common surface finish. Standard magnetization is through the 5 mm thickness, creating magnetic poles on the two 20x10 mm faces. Custom grades, coatings and magnetization directions are available according to application requirements.
Specifications
| Specification | Details |
|---|---|
| Product Name | Neodymium Block Magnet |
| Dimensions | 20 × 10 × 5 mm |
| Material | Sintered NdFeB |
| Magnetic Grades | N35–N52 |
| Standard Coating | Ni-Cu-Ni |
| Optional Coatings | Epoxy, Zinc |
| Magnetization Direction | Through 5 mm Thickness |
| Pole Faces | 20 × 10 mm |
| Shape | Rectangular Block |
| Custom Sizes | Available upon request |
The magnetic holding force depends on the selected grade, contact surface, air gap and operating conditions. Pull force values should be confirmed using the appropriate test method for the intended application.
Features
These rectangular neodymium magnets combine compact dimensions with high magnetic strength. Their flat pole faces allow direct contact with suitable ferromagnetic surfaces, making them useful for holding and positioning applications.
Grades from N35 to N52 provide different magnetic performance options. Higher-temperature grades can also be considered where improved resistance to thermal demagnetization is required.
For applications exposed to moisture or corrosive environments, alternative protective coatings can be specified. Coating selection should consider environmental exposure, operating temperature and assembly requirements.
Applications
20x10x5 mm neodymium block magnets are used in a variety of industrial and commercial applications, including:
- Magnetic Fixtures: Holding and positioning components in assembly tools and jigs.
- Industrial Equipment: Magnetic components for compact mechanical assemblies.
- Sensors and Devices: Permanent magnets used in selected sensing and positioning systems.
- Magnetic Mounting: Holding small components against suitable steel surfaces.
- Custom Assemblies: Magnetic parts manufactured for application-specific equipment.
For applications involving significant sideways loads, additional mechanical retention may be required because magnetic pull force does not directly represent resistance to sliding.
